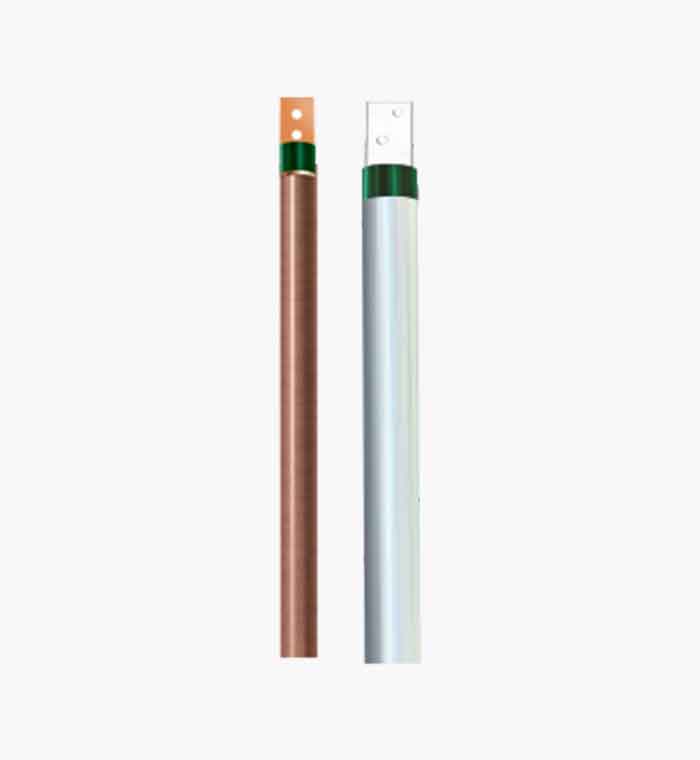

Earthing Electrode

Our high-performance Earthing Electrodes ensure safe and effective grounding for industrial, commercial, and residential applications. Designed for long life and low resistance, our electrodes are available in GI, Copper, and Copper Bonded varieties. They protect equipment and personnel by dissipating fault and leakage currents safely into the ground.

Parameter	Specification
Type	GI / Pure Copper / Copper Bonded
Length	1.5 to 3 meters
Outer Diameter	40 mm / 50 mm / 76 mm
Wall Thickness	2 mm to 3.5 mm
Copper Bonding Thickness	100 to 250 microns (for copper bonded)
Terminal	Flat / Bolt / Threaded Clamp
Material Grade	IS 3043 / UL Approved / RoHS Compliant
Resistivity	< 1 ohm with backfill compound
Life Expectancy	Up to 25 years (depending on soil conditions)
Application	Factories, Buildings, Substations, Telecom, Solar
